Mitegen Stemi 508 Stereo Microscope Kit For Protein Crystallography

MiTeGen Stemi 508 Stereo Microscope Kit

The MiTeGen ZEISS Stemi 508 Kit provides researchers with a versatile stereo microscope that is capable of routine crystallization plate screening and crystal harvesting in standard crystallography applications. It is a good choice for laboratories on a limited budget that desire high magnification, a large working distance for easy manipulation, and the ability to add high-quality imaging of samples.

The 508 is currently unavailable for purchase. The 508 should be available again after January 1st, 2025.

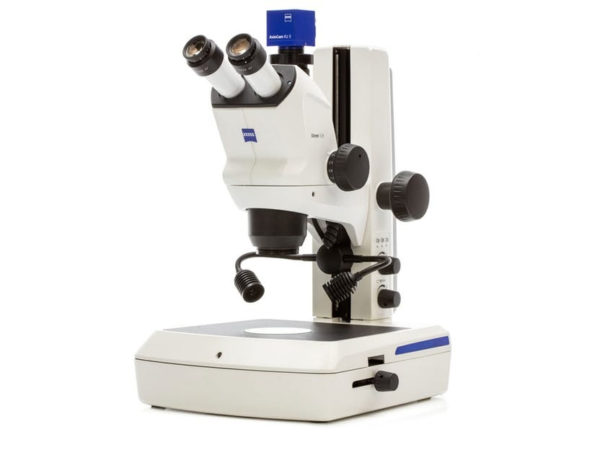

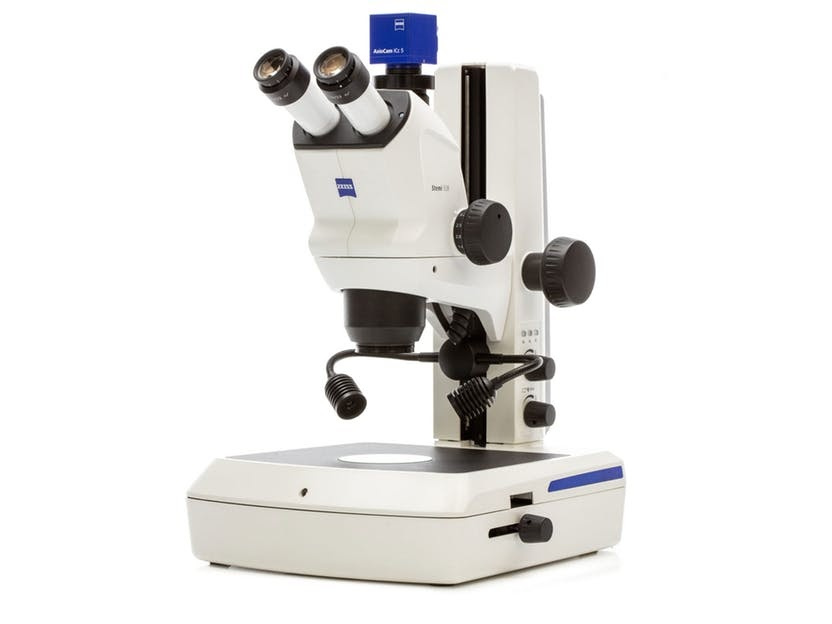

*note: Photos are provided by Carl Zeiss Microscopy and are representative of the product family but may or may not show specific configurations, features, and options of MiTeGen Kits

*note: Kits may at times have extended delivery schedules of 2 – 12 weeks

Learn More About The Stemi 508 Stereo Microscope Kit

Out of stock

SKU: ZV20-MTGK508-PC1 Category:

Product Information

Here are some specific features of the Stemi 508 that are beneficial for crystallization screening and crystal harvesting:

  • 8:1 zoom magnification range allows you to easily zoom in on small crystals and droplets for detailed observation
  • Apochromatic objectives provide sharp, clear images with excellent color fidelity, which is important for accurately assessing the quality of crystals
  • The integrated LED illumination provides bright, shadow-free light that minimizes glare and improves image clarity
  • Low viewing angle of 35° ensures a comfortable viewing experience even during long periods of use, which is important for tasks such as crystal harvesting that can be tedious and repetitive
  • Ergonomic design with easy-to-use controls makes it a pleasure to use, even for extended periods of time
  • Durable construction ensures years of reliable performance, even in demanding laboratory environments

Overall, the ZEISS Stemi 508 is a powerful and versatile stereo microscope that is well-suited for a variety of applications, including crystallization screening and crystal harvesting. It is a good choice for laboratories that require high-quality images and a comfortable viewing experience.

Specifications:

  • Magnification: 10-80x (with 16x eyepieces)
  • Cold light (LED) transillumination source with large working area stand
  • Rotatable and slidable mirror for brightfield, darkfield and oblique transillumination
  • Plain mirror side for crisp, diffuse mirror side for homogeneous illumination
  • Trinocular Camera Port Configuration (100/100) **Camera not included**
  • Camera Adapter 60N
  • Viewing angle 35 degrees with adjustable interocular distance
  • Transillumination Polarizer
  • Dual flex-neck top-side LED illumination
  • Manual focus drive
  • Analyzer Rotatable
  • 1.0X Achromat Objective Lens
  • 92mm Free working distance (from objective lens)
  • 255mm X 215mm Work space dimensions (width X depth)
  • Comes with two eye pieces
  • Achromat 2x10X & 2x16X eyepiece type

The MiTeGen Stemi 508 Stereo Microscope kit contents include:

  •  Stemi 508 Stand M
  • Magnification: 10-80x (with 16x eyepieces)
  • Free Working Distance: 92 mm
  • Eyepieces (2 x 10x & 2 x 16x)
  • Cold light (LED) transillumination source with large working area stand
  • Rotatable and slidable mirror for brightfield, darkfield and oblique transillumination
  • Plain mirror side for crisp, diffuse mirror side for homogeneous illumination
  • Trinocular Camera Port Configuration
  • Camera Adapter 60N
  • Viewing angle 35 degrees with adjustable interocular distance
  • Camera Port
  • Analyzer (rotatable)
  • Transillumination Polarizer
  • Dual flex-neck top-side LED illumination
