Torrey Pines Premium Digital Hot Plates

Digital Programmable Hot Plates

Programmable digital hot plates by Torrey Pines. When you cannot be in two places at once, these equipment are ideal for complete walk-away heating applications.

There are two modes of operation. In manual operation, simply select the parameter to be set and scroll to the value needed. The unit will do the rest. In the programmable mode, routines can be stored for instant recall and use. The stored routine will run automatically, without attention, and exactly the same time after time.

Programs can be simple or complex depending upon the need. Multiple temperatures, temperature ramp rates and timed events can be stored. When run, the unit monitors the program to be sure it runs exactly as written. Complete walk-away automation.

You have your choice of two different heater top materials. These being either ceramic glass or milled-flat cast aluminum. The ceramic glass top version is ideal for heating liquids while the milled-flat cast aluminum is ideal for heating solids.

Note: All units except the HP40A are supplied with a stainless steel immersion probe. The probe can be ordered separately. All units are 115V rates. If you desire a 230V unit, please contact us.

Learn More About These Hot Plates

$1,280.00 – $1,980.00

SKU: N/A Category:

Product Information

These fully programmable digital hot plates are the most advanced and easy-to-use units available. In manual operation, simply select the parameter to be set and scroll to the value needed. The unit will do the rest. In the programmable mode, routines can be stored for instant recall and use. The stored routine will run automatically, without attention, and exactly the same time after time.

Programs can be simple or complex depending upon the need. Multiple temperatures, temperature ramp rates and timed events can be stored. When run, the unit monitors the program to be sure it runs exactly as written. Complete walk-away automation.

We offer two different heater top materials: ceramic glass and milled-flat cast aluminum:

  • Ceramic glass tops have a maximum plate surface temperature of 450ºC. They heat and cool very quickly. They are designed for heating a solution in a vessel and are more chemically resistant to spills than an aluminum top.
  • The aluminum tops have a maximum plate surface temperature of 450ºC. They are recommended for heating a solid on the heater plate surface. They have a better temperature distribution across the plate surface than the ceramic tops.

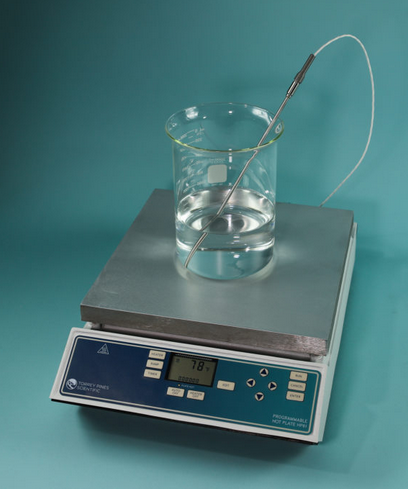

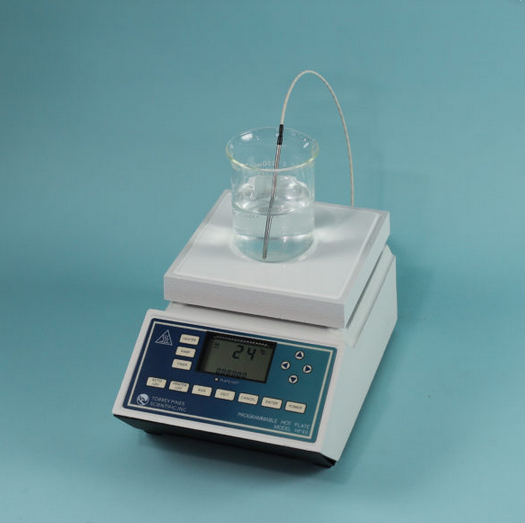

Includes the following product variants: EchoTherm™ HP40, EchoTherm™ HP40A, EchoTherm™ HP60, EchoTherm™ HP60A, EchoTherm™ HP61, EchoTherm™ HP61A

Quick Details

  • 10-program memory stored in CMOS. No batteries required
  • Each program can be 10 steps, where each step includes a temperature, time and heating rate
  • Repeat any program 1–98 times automatically. Infinite repeats settable
  • Programmable and non-programmable operation
  • Platinum RTD temperature measurement for ±1% accuracy
  • Solid ceramic heater top for quick heating on a flat, white, chemically resistant surface
  • Milled-flat cast aluminum top available for use with solids on the plate surface
  • Temperature ramping for exact heating and cooling rates
  • PID temperature control to 1°C on plate surface or solution with probe
  • Timer goes up to 99 hours, 59 minutes, 59 seconds with user settable Auto-Off
  • Electronic calibration stored in CMOS
  • RS232 interface for control or recording data on a computer
  • Custom display of all parameters all the time
  • 12-month warranty
  • UL, CSA and CE compliant
